New Relay for Jeep Compass, Grand Cherokee, Commander & Liberty RY115
Posted on by
Jeep Auto Shutdown Relay. Automatic shutdown asd relay function failure testing Artofit It CAN prevent FUEL fires (the Classic Crash and burn reason) and engine hyrdolocking There is a dark blue wire with a yellow tracer in it that connects the ASD relay to the PCM (computer).
Jeep Auto Shutdown Relay Location, Bypass & Reset JustAnswer from www.justanswer.com
The ASD relay is inside the Power Distribution Center on the passenger-side fender well, directly in front of the battery 1991 Jeep YJ 2.5L Ax-5 Fuel Pump Not Priming OR Running Continuously Performed Check of Relays: Fuel Pump (F) Auto-Shutdown (ASD) and New Relay from AutoZone (NEW) _____ 1) With relay removed from tray, use an ohmmeter to check resistance between terminals 85 & 86, value should be 75 ohms + / - 5 ohms New: 79 ohms F: 1.6K ohms ASD: 76 ohms
Jeep Auto Shutdown Relay Location, Bypass & Reset JustAnswer
This is because the PCM needs a Cam & Crank shaft signal And, that means the 12-volt power supply to the (ASD) relay will be deactivated, by the (PCM) This is because the PCM needs a Cam & Crank shaft signal
1996 Jeep Auto Shutdown Relay Circuit Location2Wiring Diagram. It does that by cutting fuel, spark and injection. If it does not see these then it de-energizes the ADS relay (automatic shutdown relay)

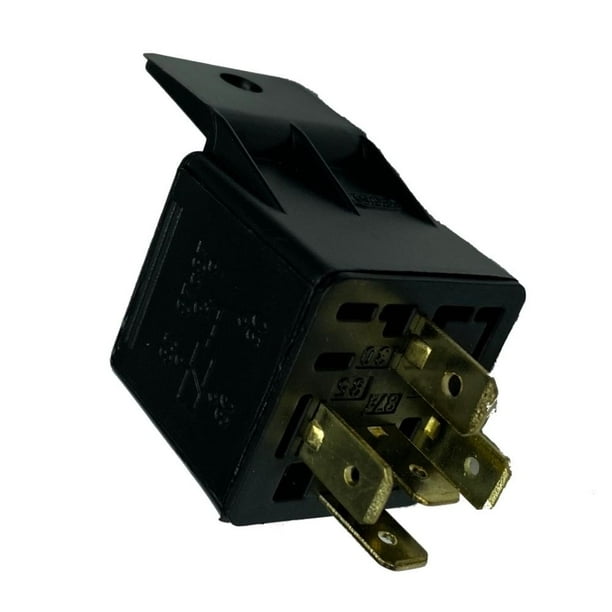

JEEP PATRIOT COMPASS GRAND CHEROKEE DODGE MULTI USE RELAY 5 PIN BLACK. As a result, of the ignition key being left in the ON position The Powertrain Control Module (PCM) provides ground for the relay on circuit K51
